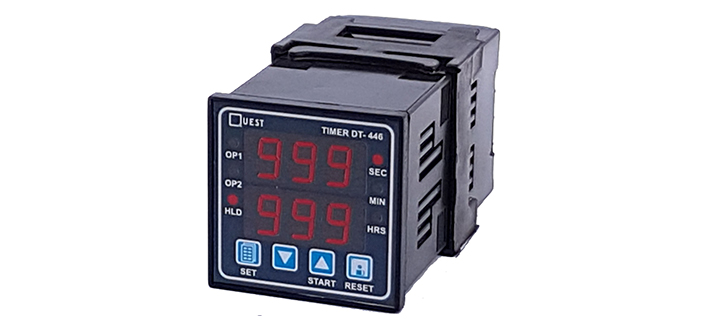

UNIVERSAL TIMER
Programmable Universal timer to provide maximum flexibility for industrial process. Programmable hard-wired or front of panel selection of process start and repeat. Cycle type and number of cycles can also be programmed. The timer is meant for multipurpose use. Tow relays with two set-points are offered for maximum flexibility. 6 LED indications provided for different ranges, relays and hold time. Soft keys provided on front of the panel for easy setting with password protection. The device provides excellent repeat accuracy.
| INPUT | Proximity Switch (PNP/NPN) OR Shorting terminal OR Power-up |
| DISPLAY | 3 Digit 0.56” Seven Segment LED (For both, real time & setting) |
| DISPLAY RANGE | 0 TO 999 |
| TIME RANGE | 0.01 Sec. - 999 Hr. |
| PROGRAMMABLE MODE OF OPERATION | Cycle Type, Number of Cycles, ON Delay, OFF delay, Interval (Hold Time), Up/Down counting, Total time, Auto Reset/Latch Output, Front Reset, Output 2 functions : Auxiliary contact, End of cycle, Instant Contact |
| POWER SUPPLY | 90 – 265 V AC |
| REPEAT ACCURACY | 0.01 % |
| ENCLOSURE SIZE (mm) | 48X48X85, 72X72X65 |
| AMBIENT TEMPERATURE | 0-60 °C |
| STORAGE TEMPERATURE | 0-70 °C |
| HUMIDITY | 0-95 % RH (non-condensing) |
