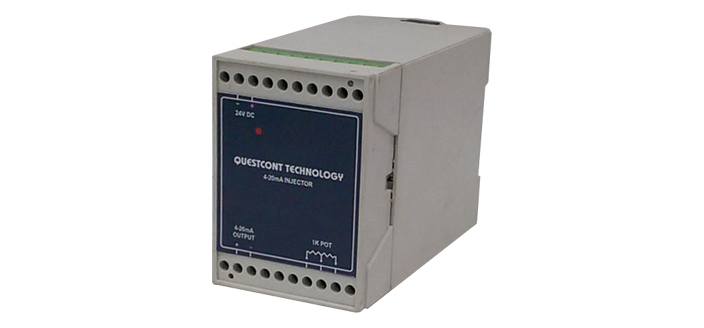

4-20mA SIGNAL INJECTOR
MODEL NUMBER : 1201
Instrument is High-Performance, 4-20mA Injector for Calibration of a process instrument or operating a device working on 4-20mA. Suitable for operating a Flow control valve, operating a VFD (Inverter) or calibrating a process controller or indicator. Device is DIN Rail mount with terminals for 1KΩ pot which can separately be mounted on front of a panel board. Varying the potentiometer can vary the output linearly from 4 to 20mA. Operates on 24V DC (230V AC Optional)
| INPUT | 1KΩ Single turn or Multi-turn Potentiometer |
| OUTPUT | 4-20mA (1000Ω) |
| POWER SUPPLY | 20-30V DC (230V AC ± 15%) |
| ENCLOSURE SIZE (mm) | 55X75X110 DIN Rail Mounting |
| AMBIENT TEMPERATURE | 0-60 °C |
| STORAGE TEMPERATURE | 0-70 °C |
| HUMIDITY | 0-95 % RH (non-condensing) |
