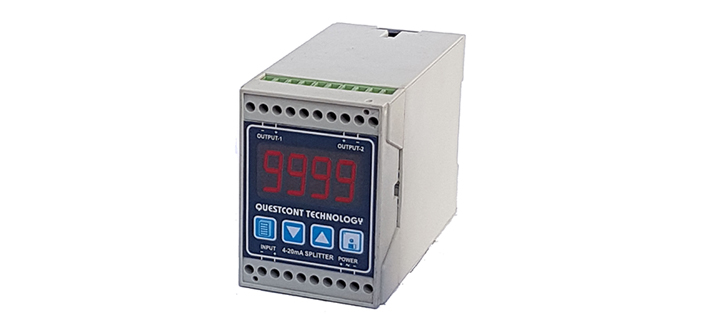

4-20mA SPLITTER WITH PROCESS INDICATOR
Splitter provides two isolated outputs for a 4-20mA process input. Splitter has a unique feature of 4-digit process indication. Indicator can also be scaled to indicate process value directly. Soft keys provided on front panel of the device for calibration and password protection. Device designed to be mounted inside control panel with DIN rail mounting.
Instrument is High-Performance, Microprocessor based 4-20mA Splitter-cum-Indicator. Ideal for duplicating and displaying process variables such as Temperature, Pressure, pH, Conductivity, Humidity, Level, Gas and Flow etc. It is field scalable for ease of application and flexibility. Specially designed to duplicate isolated process variable for feeding to different instruments or PLC.
| INPUT | 4-20mA Process signal |
| OUTPUT | 2 X 4-20mA of input signal (600 Ω) |
| DISPLAY | 4 Digit 0.56” Seven Segment High Bright LED |
| DISPLAY RANGE | -1999 to +9999 |
| DISPLAY ACCURACY | ± 0.25 % F.S. ± 1 Digit |
| DECIMAL POINT | Independently Selectable |
| POWER SUPPLY | 90V - 265 V AC or 24V DC |
| CONTROL ACCURACY | 0.3 % of full scale ± 1 0C |
| ENCLOSURE SIZE (mm) | 55X75X110 DIN Rail Mounting |
| AMBIENT TEMPERATURE | 0-60 °C |
| STORAGE TEMPERATURE | 0-70 °C |
| HUMIDITY | 0-95 % RH (non-condensing) |
