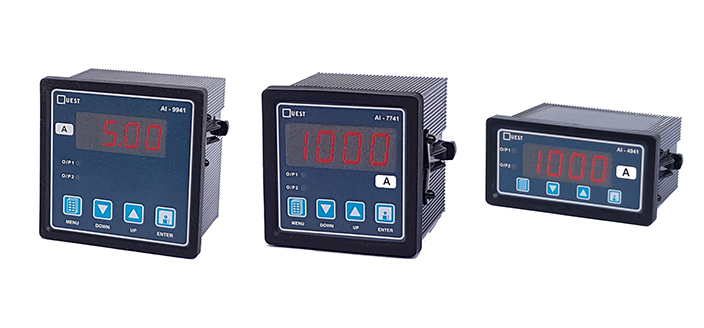

Current Controllers
MODEL NUMBER : 115
Current sensing controller with four operating modes. The device is suitable for different industrial applications. It offers two relay outputs with potential free contacts for hooter or any desired control. Input fed is 0-5A. Operation mode and set-points of relays can be done through soft keys provided on front of the panel with password protection.
| INPUT | 0-5A AC ( Burden : 625 mW ) |
| OUTPUT | 2 Relays ( NO ) Contact: 5A @ 230V AC or SSR (Optional) |
| DISPLAY | 4 Digit 0.56” High Bright Seven Segment LED |
| DISPLAY RANGE | 0 – 2000 Counts |
| DECIMAL POINT | Auto shift by C.T. ratio |
| POWER SUPPLY | 230 V AC ± 15 % |
| DISPLAY ACCURACY | 0.5 % F.S. + ±2 counts |
| CONTROL ALGORITHM | Under Current, Over Current, Under-Over Current, Two Set-points |
| ENCLOSURE SIZE (mm) | 96X96X65, 72X72X65, 48X96X65 |
| AMBIENT TEMPERATURE | 0-60 °C |
| STORAGE TEMPERATURE | 0-70 °C |
| HUMIDITY | 0-95 % RH (non-condensing) |
