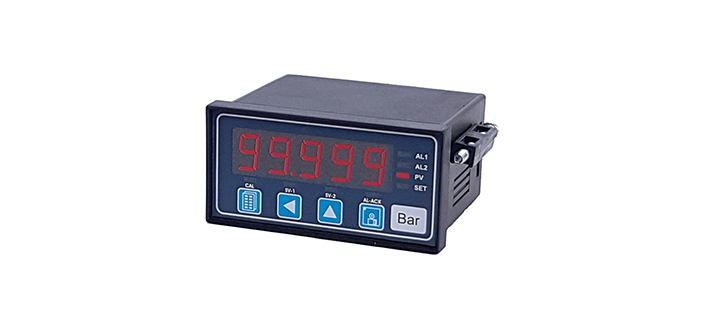

5 DIGIT PROCESS INDICATOR-CONTROLLER
MODEL NUMBER : PC-1205R
Process Indicator-Controller to accept analog process inputs of various types. Microcontroller based instrument with 5-digit (Tri-Color) process indicator-controller. The unit can be scaled for both zero and span, to display in engineering units. The decimal point position is also selectable. Any process value can be programmed. Soft keys provided on front of the panel for easy setting with password protection. Unit has 2 programmable relays with individual set-points and hysteresis. Each relay mode of operation is programmable (Automatic, Manual, Latch) with rising as well as falling and energize or de-energize settings. ON/OFF Delay response of each relay is programmable. Instrument is equipped with communication facility of MODBUS RTU (with selectable I.D.). Unit offers 24V DC for sensor supply.
| PROCESS INPUT | 0-5V DC, 1-5V DC, 0-10V DC, 2-10V DC, 0-20mA, 4-20mA |
| CONTROL OUTPUT | Relays ( NO ) Contact: 5A @ 230V AC or SSR (Optional) |
| ALARM OUTPUT | Relays ( NO ) Contact: 5A @ 230V AC or SSR (Optional) |
| DISPLAY | 5 Digit 0.56” Seven Segment High Bright LED (Tri-Color) |
| DECIMAL POINT | Selectable (0, 0.0, 0.00, 0.000, 0.0000) |
| DISPLAY RANGE | -19999 TO +99999 |
| DISPLAY ACCURACY | 0.1 % of Span + ±2 Counts |
| CONTROL MODE | ON/OFF with HEAT/COOL and Auto-tuned PID |
| CONTROL PERIOD | 0.5 – 30 Sec. |
| ALARM MODE | High Alarm and Deviation Alarm with Hysteresis |
| SENSOR EXCITATION | 12V DC ± 10 % for sensor supply |
| POWER SUPPLY | 230 V AC ± 15 % |
| INPUT SHIFT PARAMETER | -99.9 to +99.9 |
| INPUT FILTER | 1 to 30 Sec. |
| ENCLOSURE SIZE (mm) | 48X96X65 |
| AMBIENT TEMPERATURE | 0-60 °C |
| STORAGE TEMPERATURE | 0-70 °C |
| HUMIDITY | 0-95 % RH (non-condensing) |
