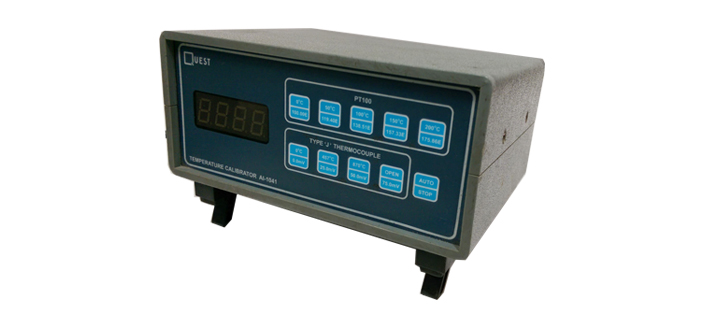

TEMPERATURE CALIBRATOR
MODEL NUMBER : 1201
This instrument is an easy calibrator with One-Key-One-Function user interface. It Provides immediate access to setting the temperature and auto-step time saving function. One device to calibrate Pt-100 based or thermocouple based instruments together. Auto mode provides stepping outputs at an interval of 5 seconds to cover complete range from 0-200o C in steps of 50o C for PT-100 and 0-75mV in steps of 25mV for thermocouples. Any particular range can be selected manually.
| DISPLAY | 4 Digit 0.56” Seven Segment High Bright LED |
| OUTPUT FOR THERMOCOUPLE | 0mV, 25mV, 50mV, 75mV, |
| OUTPUT FOR PT-100 | 100.00Ω, 119.40Ω, 138.51Ω, 157.33Ω, 175.86Ω, |
| ACCURACY | ±0.05 % of Span |
| POWER SUPPLY | 230V AC ± 15 % |
| ENCLOSURE SIZE (mm) | 85 (H) x 190 (W) x 140 (D) |
| AMBIENT TEMPERATURE | 0-60 °C |
| STORAGE TEMPERATURE | 0-70 °C |
| HUMIDITY | 0-95 % RH (non-condensing) |
